Order information

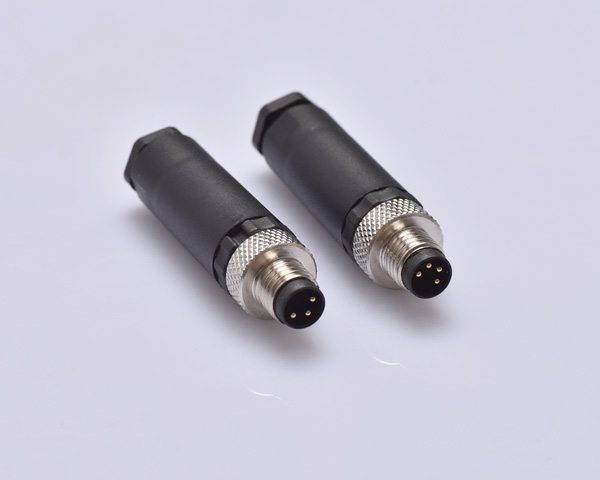

L-KLS15-M8 A-P1   XX

L:     RoHS
M8: Screw type
A:    A-Coding
P1:   Plug Code (Male Pin)
XX:  Number of Contacts  (3P 4P 6P 8P)

Electrical & Mechanical data
IP rating:IP67
Wire gauge:24AWG/0.25mm²
Connector contacts:Brass with gold plated
Contacts resistance:≤ 5 mΩ
Insulation resistance:≥100 MΩ
Orientation:Straight
Coupling nut/screw:Brass with nickel plated screw
Cable jacket material:PUR
Insert/ Housing:TPU
Overmold/ Shell:TPU
Sealing:O-ring
Temperature Range:-25°C ~ + 80°C

KLS15-M8A-P1.pdf
