Order information

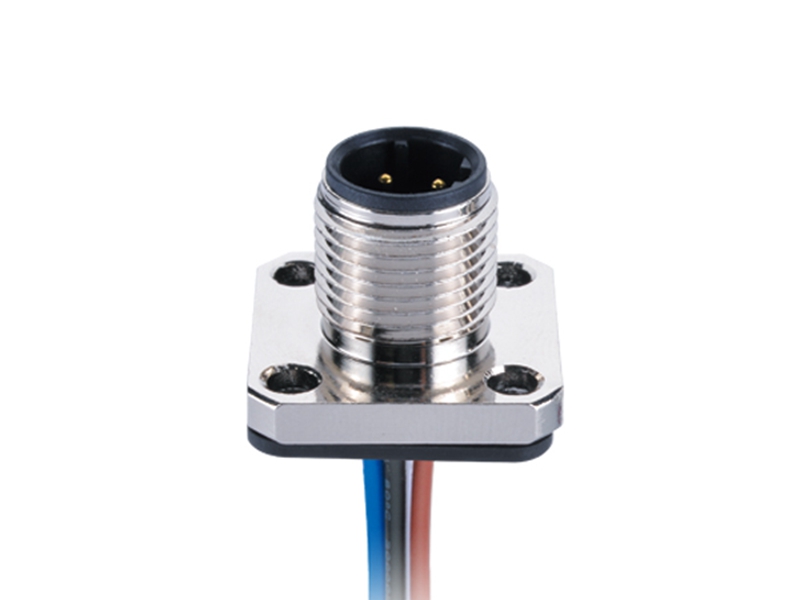

L-KLS15-M12 A-N2   XX

M12: Screw type
A:    A-Coding
N2:   Soldering ,Flange Panel mount,male
XX:  Number of Contacts

Electrical & Mechanical data
IP rating:IP67
Contacts resistance:≤ 5 mΩ
Insulation resistance:≥100 MΩ
Orientation: PCB 180° Front Lock
Over mold/ Shell:Metal shell
Connector contacts:Brass with gold plated
Coupling nut/screw:Brass with nickel plated screw
Insert/ Housing: PA66 + GF
Sealing:O-ring
Temperature Range:-25°C ~ + 80°C

KLS15-M12A-N2.pdf
