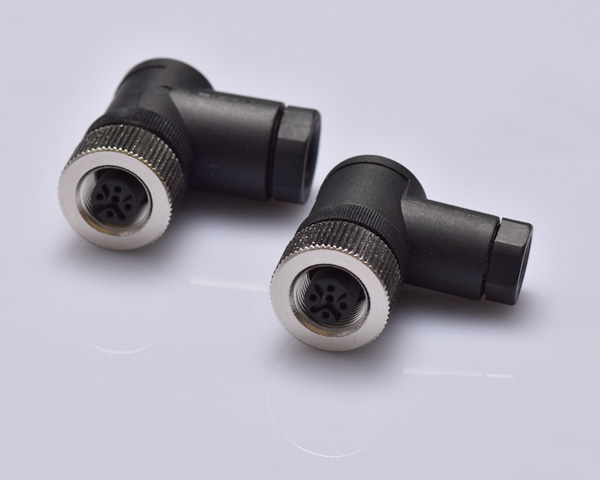

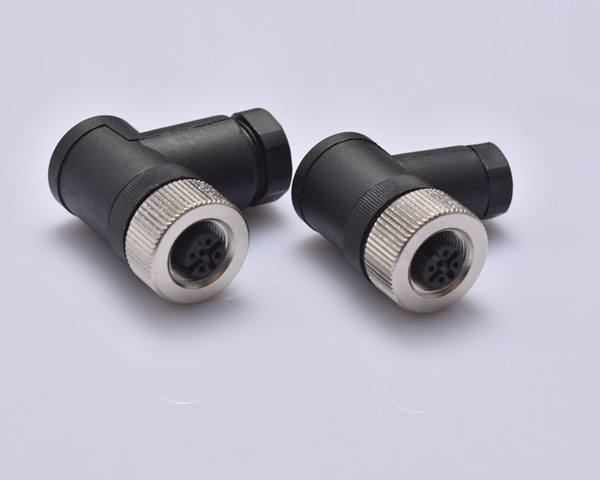

IP67 M12 A-coding R/A Plug Female Connector Automation technology

  • Model: KLS15-M12A-TR2
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Order information
L-KLS15-M12 A-TR2   XX   PG X

L:     RoHS
M12: Screw type
A:    A-Coding
TR2: R/A  Plug Code (Female Pin)
XX:  Number of Contacts
X:    Cable outlet  PG7 or PG9

Electrical & Mechanical data
IP rating:IP67
Wire gauge:24AWG/0.25mm²
Connector contacts:Brass with gold plated
Contacts resistance:≤ 5 mΩ
Insulation resistance:≥100 MΩ
Orientation:Right angle
Coupling nut/screw:Brass with nickel plated screw
Cable jacket material:PUR
Insert/ Housing:TPU
Overmold/ Shell:TPU
Sealing:O-ring
Temperature Range:-25°C ~ + 80°C

  4Pin 5Pin 8Pin
Rated current 4A 4A 2A
Rated voltage 250V 60V 30V
