Order information
KLS15-253-J09-   XX   M2

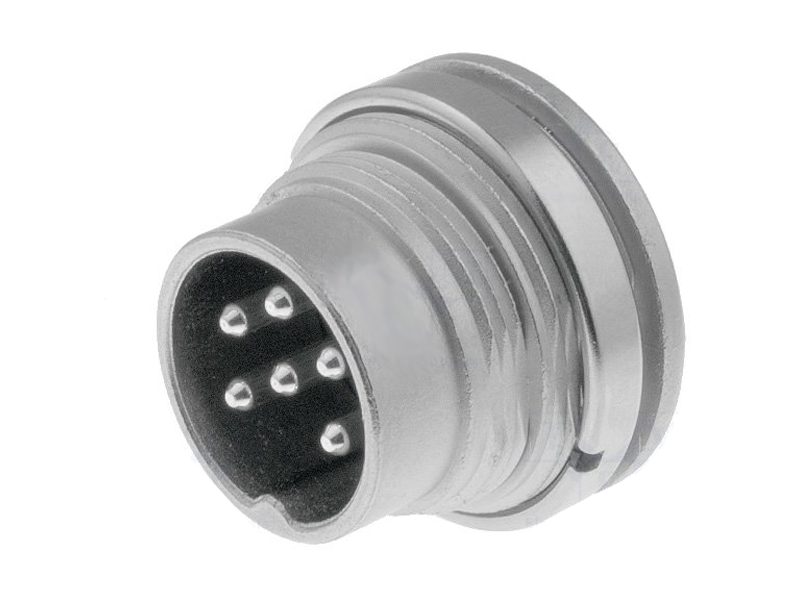

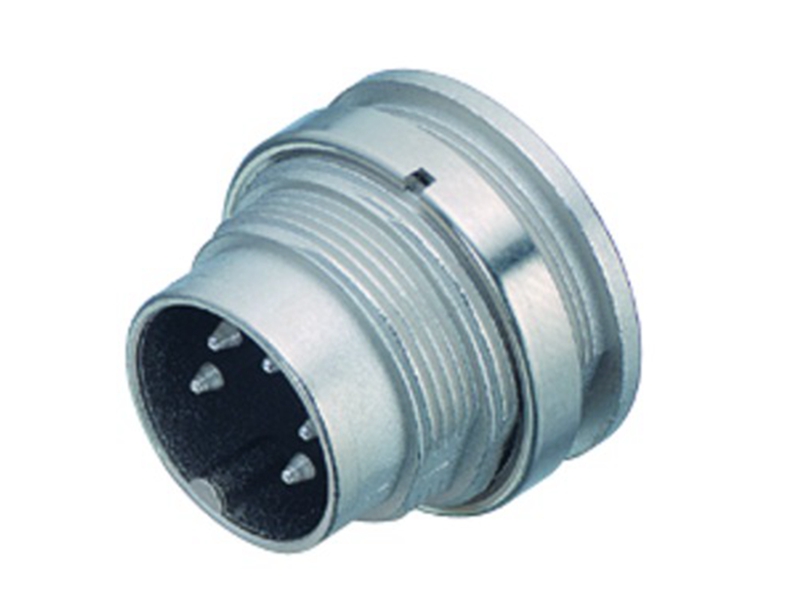

J09:  C091 Miniature
Circular Connector
XX:  Contacts Code
M2:  Soldering Connectors,Panel mount,Front lock, Male Pin

Material:
SHELL Housing:     Zinc alloy, Nickel plated
Insert Housing:     PA66+GF 20%
Contact:               Brass,    Silver plated
Termination:          Solder
Locking:               Threaded Coupling
Version:               Straight
Mating life:          500 cycles
IP rating:             IP65
Temperature Range:-25°C ~ + 80°C

KLS15-253-J09-M2.pdf
