Order information
KLS15-253-J09-   XX   M8

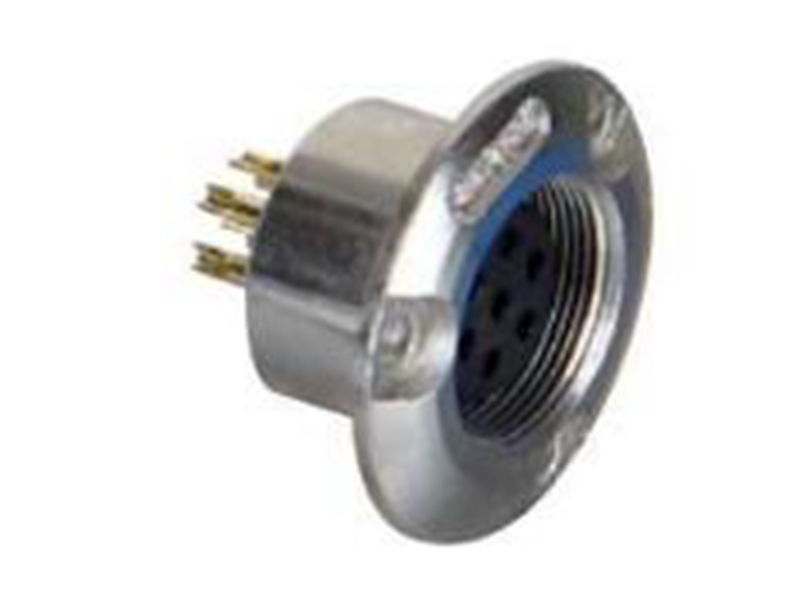

J09:  C091 Miniature
Circular Connector
XX:  Contacts Code
M8:  Soldering Connectors,Circular Panel mount, Female Pin

Material:
SHELL Housing:     Zinc alloy, Nickel plated
Insert Housing:     PA66+GF 20%
Contact:               Brass,    Silver plated
Termination:          Solder
Locking:               Threaded Coupling
Version:               Straight
Mating life:          500 cycles
IP rating:             IP65
Temperature Range:-25°C ~ + 80°C

KLS15-253-J09-M8.pdf
