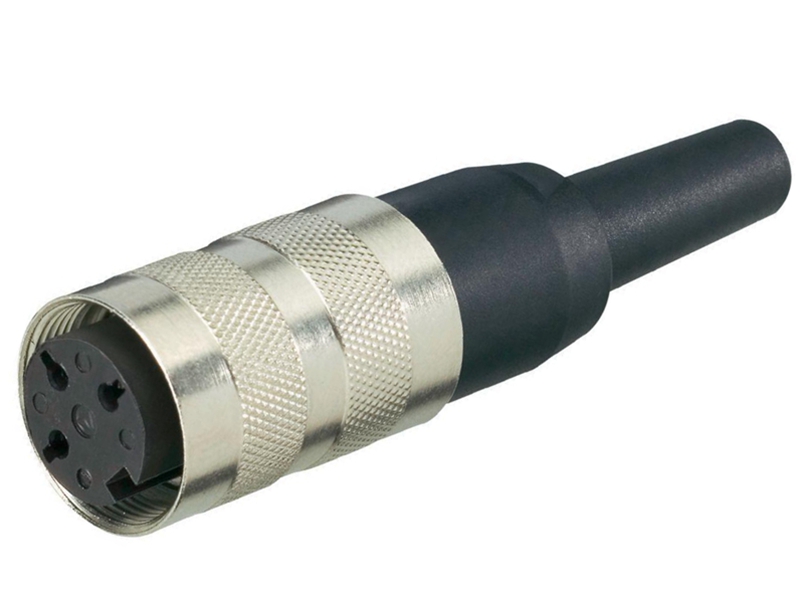

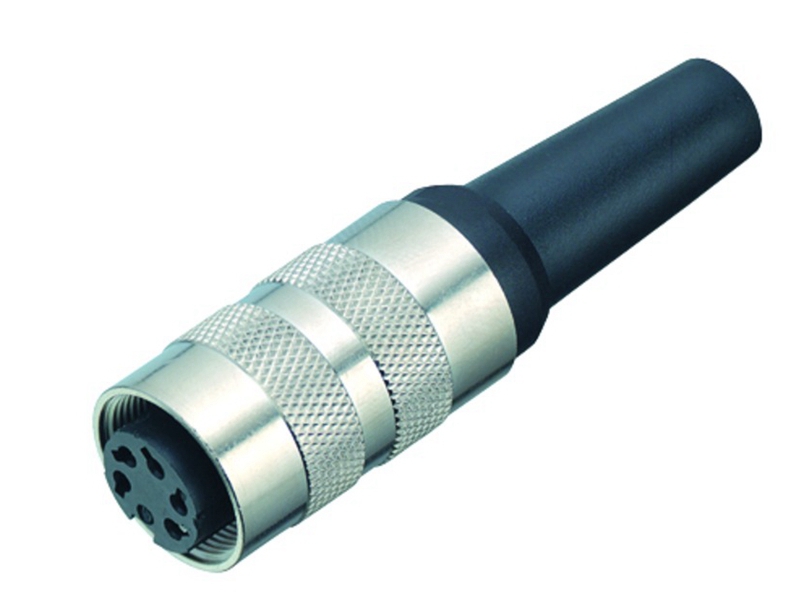

IP65 Female Plug Miniature Circular Connector C091 & 581 Series

  • Model: KLS15-253-J09-F1
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Order information
KLS15-253-J09-   XX   F1

J09:  C091 Miniature
Circular Connector
XX:  Contacts Code
F1:   Plug  Female Pin

Material:
SHELL Housing:     Zinc alloy, Nickel plated
Insert Housing:     PA66+GF 20%
Contact:               Brass,    Silver plated
Termination:          Solder
Locking:               Threaded Coupling
Version:               Straight
Mating life:          500 cycles
IP rating:             IP65
Cable Diameter:   ∅6.0~∅8.5mm
Temperature Range:-25°C ~ + 80°C
