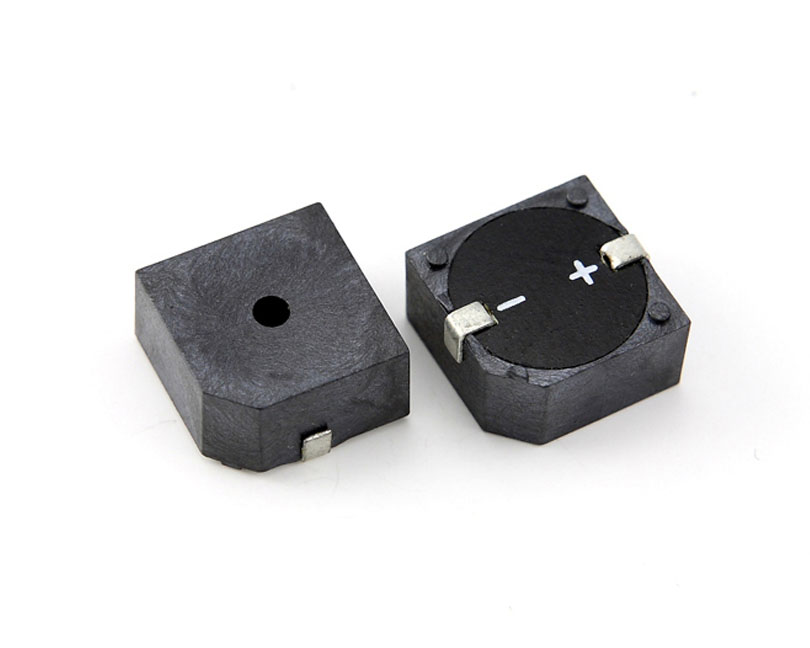

Internally driven SMD piezo buzzer KLS3-SMT-15*08B
- Product Details
SMD piezo buzzer,Internally driven type
Rated Voltage: 5VDC
Operating Voltage: 3-16VDC
Rated Current : 5mA Max.
S.P.L.(@10cm): 80dB Min at Rated Voltage at 10cm
Resonance Frequency : 4.0±0.5KHz
Tone : Continuous
Operating Temp: -30~+85°C
Weight: 1.7g
Housing Material: PPS
Size: 14.3 x14.3x 7.4mm
