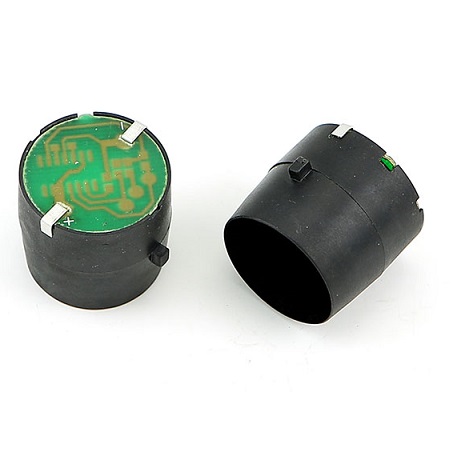

Internally driven SMD piezo buzzer
- Product Details
SMD piezo buzzer,Internally driven type
Rated Voltage: 6VDC
Operating Voltage: 3-12VDC
Rated Current : 12mA Max.
S.P.L.(@10cm): 100dB Min at Rated Voltage at 10cm
Resonance Frequency : 3.6±0.5KHz
Tone : Continuous
Operating Temp: -30~+85°C
Weight: 5.5g
Housing Material: PPS
Size: Φ23 x 21.8mm
