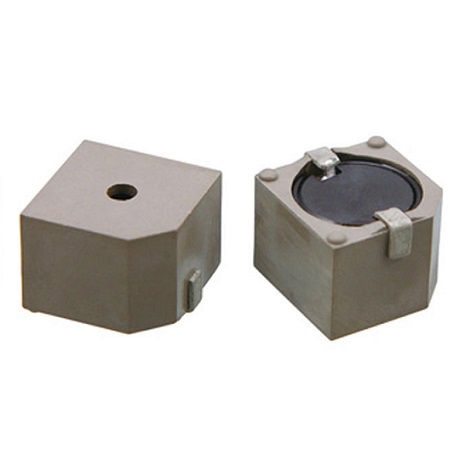

SMD magnetic buzzer,Internally driven type,Top sound

Oscillation Frequency: 2.4±0.3KHz
Rated Voltage: 5VDC
Operating Voltage: 4~7VDC
Rated Current: 30mA Max.at Rated Voltage
Sound Pressure Level: 85dB Min.at 10 cm at Rated Voltage
Tone/Pulse Rate: Single
Operating Temp: -40~+85°C
Weight: 2.5g
Housing Material: PPS

Size:

KLS3-SMT-13x10A.pdf
