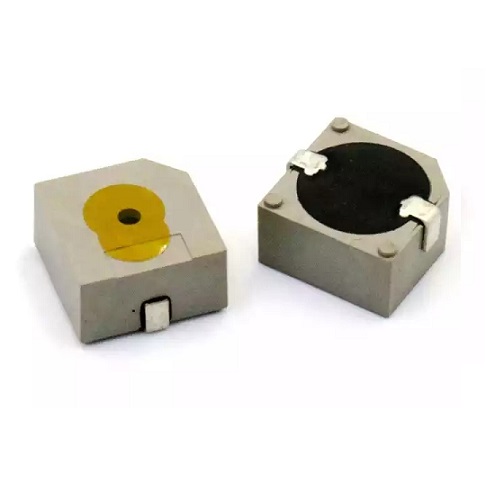

Internally driven SMD magnetic buzzer
- Product Details
SMD magnetic buzzer,Internally driven type,Top sound
Oscillation Frequency: 2.4±0.4KHz
Rated Voltage: 5VDC
Operating Voltage: 4~7VDC
Rated Current: 30mA Max.at Rated Voltage
Sound Pressure Level: 85dB Min.at 10 cm at Rated Voltage
Tone/Pulse Rate: Constant
Operating Temp: -40~+85°C
Weight: 2.0g
Housing Material: PPS
Size:
