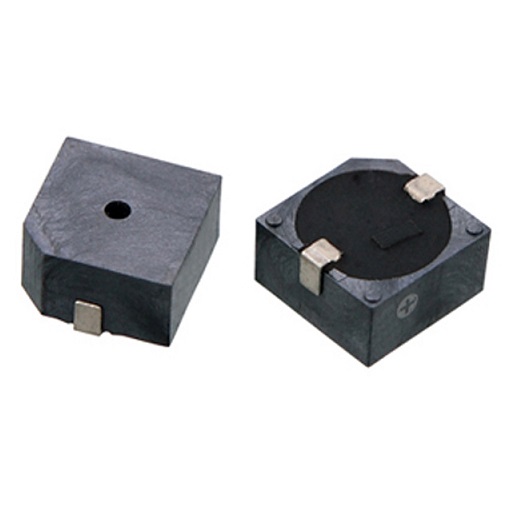

SMD magnetic buzzer,Internally driven type,Side sound

Oscillation Frequency:            2.7±0.3KHz
Rated Voltage:                        5VDC
Operating Voltage:                  4~7VDC
Rated Current:                        30mA Max.at Rated Voltage
Sound Pressure Level:            83dB Min.at 10 cm at Rated Voltage
Tone Nature:                            Single
Operating Temp:                      -40~+85°C
Weight:                                    1.5g
Housing Material:                    PPS

Size:

KLS3-SMT-10x06.pdf
