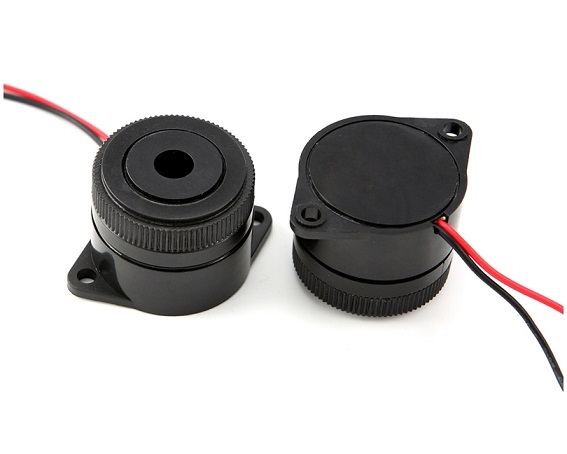

Internally driven piezo buzzer,with wire

  • Model: KLS3-LPB-30*25
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Internally driven piezo buzzer,Top sound

Resonance Frequency : 3.5±0.5KHz
Operating Voltage: 3-24VDC
Rated Voltage: 12VDC
Current Consumption: 15mA Max.at Rated Voltage
Sound Pressure Level: 90dB Min at Rated Voltage at 10cm
Tone Nature : Constant sound
Operating Temp: -40~+85°C
Weight: 8g
Housing Material: ABS

Size:
