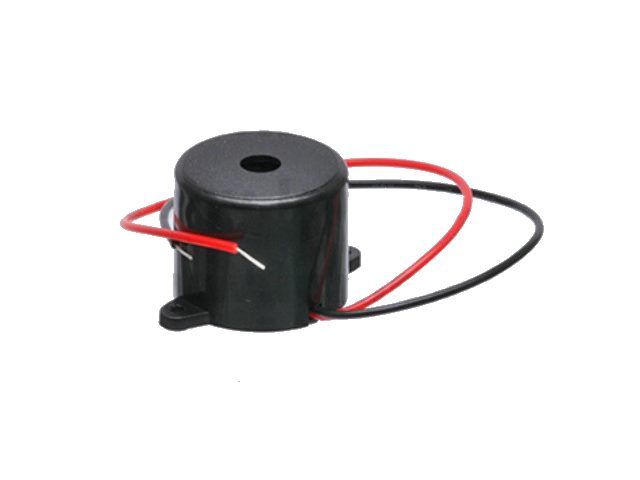

Internally driven piezo buzzer,Top sound

Resonance Frequency : 3.3±0.5KHz
Operating Voltage: 3-24VDC
Rated Voltage: 12VDC
Current Consumption: 15mA Max.at Rated Voltage
Sound Pressure Level: 88dB Min at Rated Voltage at 10cm
Tone Nature : Constant sound
Operating Temp: -40~+85°C
Weight: 4g
Housing Material: ABS

Size:

KLS3-LPB-23x19.pdf
