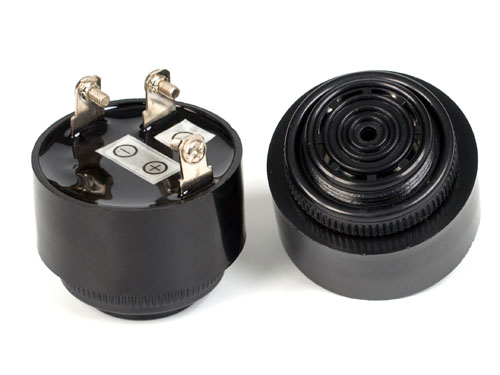

Internally driven piezo buzzer,Top sound

Resonance Frequency : 2.9±0.5KHz
Operating Voltage: 10-28VDC
Rated Voltage: 12VDC
Current Consumption: 30mA Max.at Rated Voltage
Sound Pressure Level: 90dB Min at Rated Voltage
Tone Nature : Continuous+Fast Pulse
Operating Temp: -40~+85°C
Weight: 33g
Housing Material: ABS

Size:

KLS3-PB-43x33-3p.pdf
