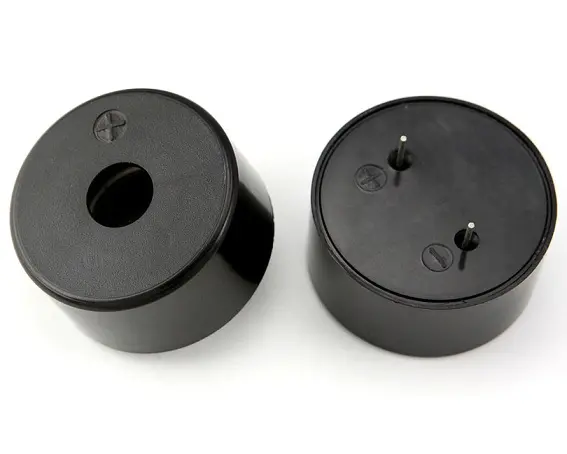

Internally driven piezo buzzer,Top sound

Resonance Frequency : 2.8±0.5KHz
Operating Voltage: 3-20VDC
Rated Voltage: 12VDC
Current Consumption: 12mA Max.at Rated Voltage
Sound Pressure Level: 100dB Min at Rated Voltage at 30cm
Tone Nature : Constant sound
Operating Temp: -40~+85°C
Weight: 12g
Housing Material: ABS

Size:

KLS3-PB-43x14.pdf
