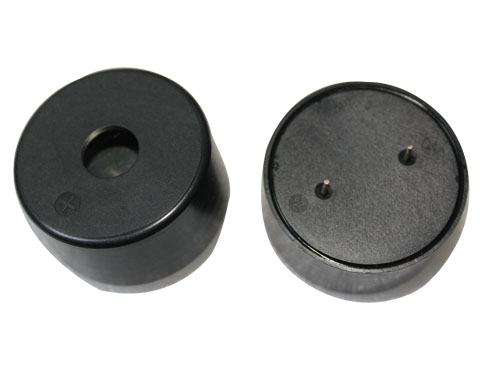

Internally driven piezo buzzer,Top sound

Resonance Frequency : 2.8±0.5KHz
Operating Voltage: 3-20VDC
Rated Voltage: 12VDC
Current Consumption: 50mA Max.at Rated Voltage
Sound Pressure Level: 100dB Min at Rated Voltage
Tone Nature : Constant sound
Operating Temp: -40~+85°C
Weight: 13g
Housing Material: ABS

Size:

KLS3-PB-40x20.pdf
