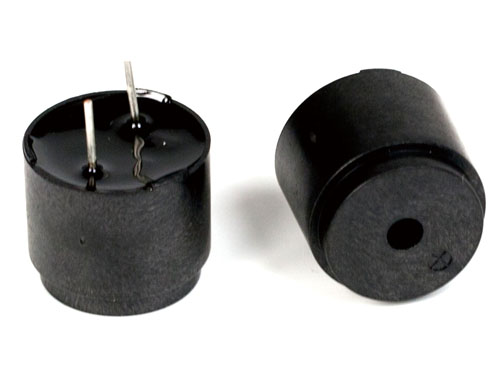

Internally driven magnetic buzzers

  • Model: KLS3-MWC-16*14
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Internally driven magnetic buzzers,Top sound

Resonance Frequency : 2.2±0.3KHz
Operating Voltage: 3-12VDC
Rated Voltage: 6VDC (3VDC~12VDC Customizable)
Current Consumption: 30mA Max.at Rated Voltage
Sound Pressure Level: 85dB Min at Rated Voltage at 10cm
Tone Nature : Constant
Operating Temp: -40~+85°C
Weight: 7g
Housing Material: PPO

Size:
