Inductive Polyester Film Metal Foil Capacitor
- Product Details

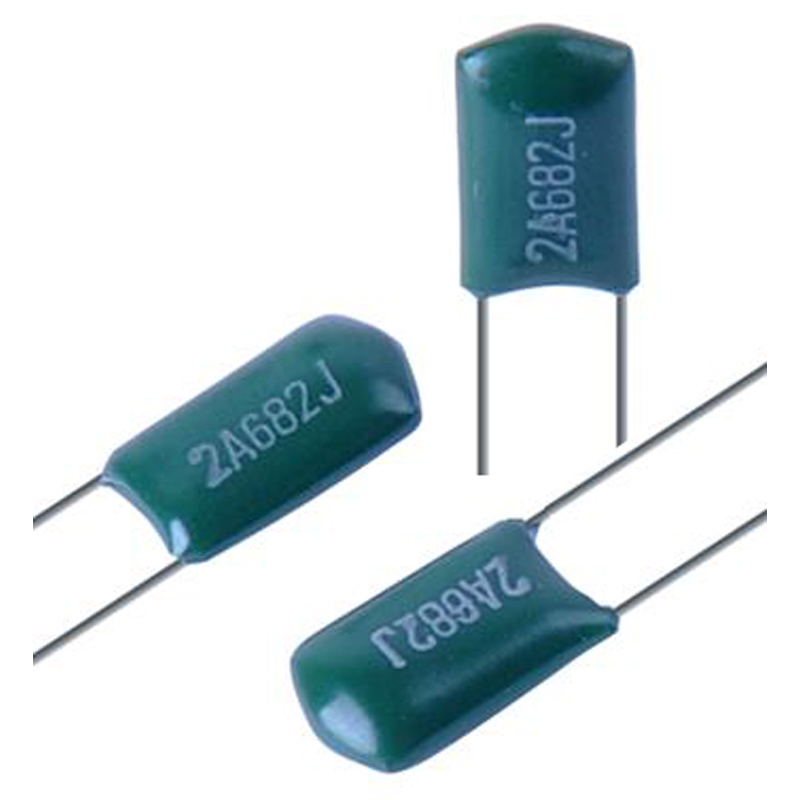

Inductive Polyester Film Metal Foil Capacitor
| : | .Small size,light weight and low cost .Dissipation factor is small because the leads are directly welded to electrodes .Epoxy resin vacuum-dipped enhances the mechanical strength and humidity resistance .Widely used in DC and pulsating circuits of radio, TV sets and various electronic equipments |
Electrical Characteristics:
Reference Standard: IEC 60384-11
Rated Temperature: -40℃～85℃
Rated Voltage: 50VDC、63/100VDC、160V/250VDC、400VDC、630VDC、1000/1200VDC
Capacitance Range: 0.0010μF～0.47μF
Capacitance Tolerance: ±5%(J),±10%(K)
| ORDER INFORMATION | ||||||||||
| KLS10 | – | CL11 | – | 104 | J | 100 | – | P5 | ||
| SERIES | CL11 : Inductive Polyester Film Metal Foil Capacitor | CAPACITANCE | TOL. | Rated Voltage | Pitch | |||||
| IN 3DIGITS | K= ± 10% | 100=100VDC | P5=5mm | |||||||
| 332=0.0033uF | J= ± 5% | 250=250VDC | P7.5=7.5mm | |||||||
| 104= 0.1 uF | 400=400VDC | |||||||||
| 474=0.47uF | ||||||||||
| 105= 1 uF | ||||||||||
