IEEE 1394 Servo Connector,10P Male
- Product Details
IEEE 1394 Servo Connector,10P Male

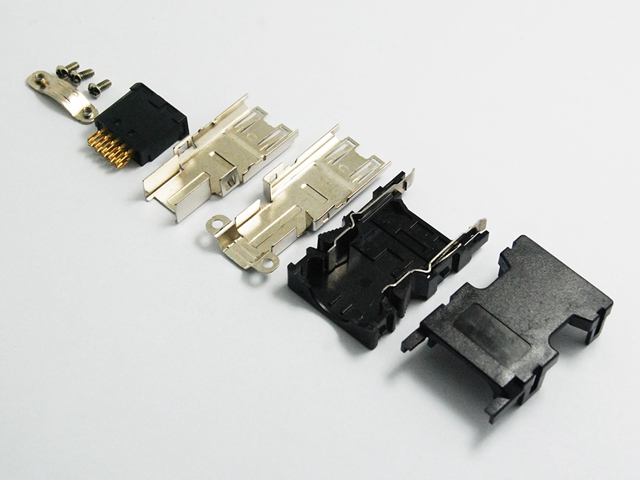

Materials:
1.Plastic body:PBT,UL94-V0
2.Terminal:C5191-EH
3.Up iron shell:C2680-H
4.Bottom iron shell:C2680-H
5.Up outside shell:PBT
6.Bottom outside shell:PBT
7.Clips:SPCC
8.Lock:S301
Electrical:
Current Rating: 1.0 A
Contact resistance:20mΩ MAX
With standing Voltage:500 VRMS for 1 minute
Insulation resistance:1000MΩ Min
Temperature Rating: -40%%DC to +105%%DC
