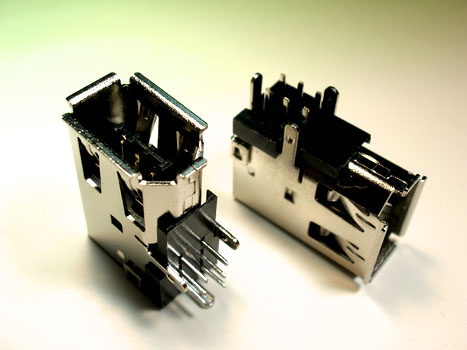

IEEE 1394 Connector 6P female pcb dip 90
- Product Details
How to order Example:
KLS1-1394-6FA-B
W=White B=Black
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Brass
Shell:Copper Alloy
Pin Plated: Gold 3u” over 50u” nickel
Electrical:
Current Rating: 1.5 AMP
Insulator Resistance: 500M Ohm min
Dielectric Withstanding Voltage:500 VAC / 1Minute
Contact Resistance: 30m Ohm max.
Temperature: -20ºC ~+85ºC
