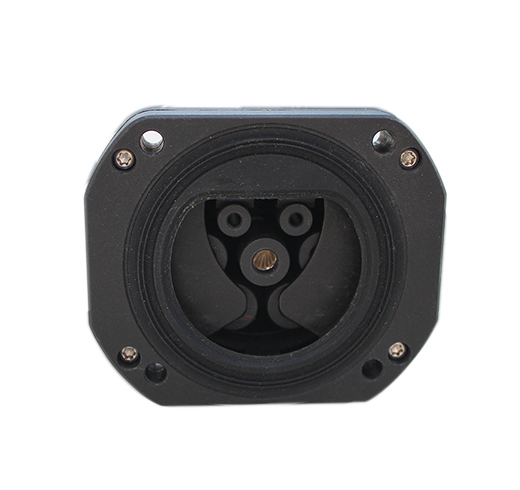

IEC standard AC pile end charging socket

  • Model: KLS15-IEC04B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Features

1. Meet IEC 62196-2:2010 standard

2. Nice appearance, with protective door, with protective cover, support after installation

Mechanical properties

1. Mechanical life : no-load plug in/pull out>10000 times

Electrical Performance

1. Rated current:32A

2. Operation voltage: 250/415V AC

3. Insulation resistance:>1000MΩ(DC500V)

4. Terminal temperature rise:<50K

5. Withstand Voltage:2000V

6. Contact Resistance: 0.5mΩ Max

Applied Materials

1. Case Material:Thermoplastic materials

2. Terminal: copper alloy, silver plated

3.Inner core: thermoplastic

4.Excellent protection performance,protection grade reaches IP54

Environmental performance

1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring

Model

KLS15-IEC04B-EV16S

KLS15-IEC04B-EV16S-3

KLS15-IEC04B-EV32S

KLS15-IEC04B-EV32S-3

KLS15-IEC04B-EV50S

KLS15-IEC04B-EV50S-3

V3-DSIEC2a-GEL-EV63S

V3-DSIEC2a-GEL-EV63S-3

Rated current

16A single-phase

16A three-phase

32A single-phase

32A three-phase

50A single-phase

50A three-phase

63A single-phase

63A three-phase

Cable specification

3 X 2.5mm² + 2 X 0.75mm²

5 X 2.5mm² + 2 X 0.75mm²

3 X 6mm² + 2 X 0.75mm²

5 X 6mm² + 2 X 0.75mm²

3 X 10mm² + 2 X 0.75mm²

5 X 10mm² + 2 X 0.75mm²

3 X 16mm² + 2 X 0.75mm²

5 X 16mm² + 2 X 0.75mm²
