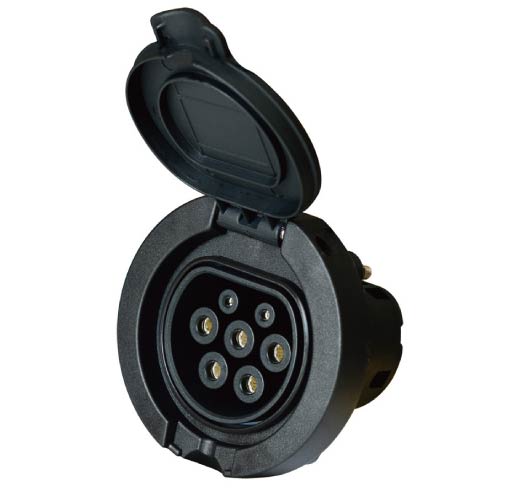

IEC standard AC pile end charging socket
- Product Details
| ITEM | Installation position | Connector | Standard | Rated current | Rated Voltage | Cable specification |
| KLS15-IEC06-E16 | Charging pile | JACK | IEC 62196-2 | 16A | 250V | 3*2.5mm2+2*0.5mm2 |
| KLS15-IEC06-D16 | Charging pile | JACK | IEC 62196-2 | 16A | 415V | 5*2.5mm2+2*0.5mm2 |
| KLS15-IEC06-E32 | Charging pile | JACK | IEC 62196-2 | 32A | 250V | 3*6mm2+2*0.5mm2 |
| KLS15-IEC06-D32 | Charging pile | JACK | IEC 62196-2 | 32A | 415V | 5*6mm2+2*0.5mm2 |
| KLS15-IEC06-E63 | Charging pile | JACK | IEC 62196- | 63A | 250V | 3*13.3mm2+2*0.75mm2 |
| KLS15-IEC06-D63 | Charging pile | JACK | IEC 62196- | 63A | 415V | 5*13.3mm2+2*0.75mm2 |
Features:
- Meet 62196-2 IEC 2010 SHEET 2-IIa standard
- Nice appearance,up flip protection ,support front and back installation.
- Reliability of materials, anti-flaming, pressure-resistant, abrasion resistance, impact resistance and high oi
- Excellent protection performance,protection grade IP44 (Working condition)
Mechanical properties
Mechanical life: No-load plug in /pull out >5000 times
Coupled insertion force: > 45N < 80N
Electrical Performance
1.Rated current:16A 32A or 63A
2.Operating Voltage :250/415V
3.Insulation resistance:>1000MΩ（DC500V）
4.Terminal temperature rise: <50K
5.Withstand voltage: 2000V
6.Contact Resistance: 0.5mΩ Max
Applied Materials
1.Case Material :Thermoplastic, flame retardant grade UL94-0
2.Contact bush: Copper alloy,silver plating
Environmental performance
Operating temperature :-30 ℃ ~+50 ° C
