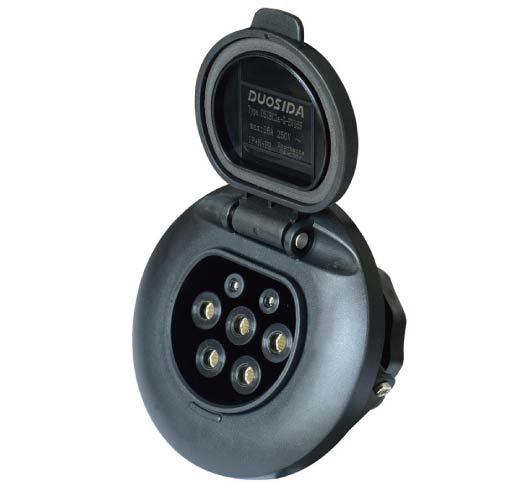

IEC standard AC pile end charging socket
- Product Details
| ITEM | Installation position | Connector | Standard | Rated current | Rated Voltage | Cable specification |
| KLS15-IEC02-E16 | Charging pile | JACK | IEC 62196-2 | 16A | 250V | 3*2.5mm2+2*0.5mm2 |
| KLS15-IEC02-D16 | Charging pile | JACK | IEC 62196-2 | 16A | 415V | 5*2.5mm2+2*0.5mm2 |
| KLS15-IEC02-E32 | Charging pile | JACK | IEC 62196-2 | 32A | 250V | 3*6mm2+2*0.5mm2 |
| KLS15-IEC02-D32 | Charging pile | JACK | IEC 62196-2 | 32A | 415V | 5*6mm2+2*0.5mm2 |
Features:
1. Meet 62196-2 IEC 2010 SHEET 2-IIa standards
2. Nice appearance, up flip protection, support front installation
3. Reliability of materials, anti-flaming, pressure-resistant, abrasion resistance, impact resistance and high oil
4. Excellent protection performance, protection grade IP44
Mechanical properties:
1. Mechanical life: no load plug in/pull out＞5000times
2. Coupled insertion force: ＞45N＜80N
Electrical Performance:
1. Rated current: 16A or 32A
2. Operating voltage: 250/415V
3. Insulation resistance:＞1000MΩ（DC500V）
4. Terminal temperature rise: <50K
5. Withstand voltage: 2000V
6. Contact resistance: 0.5mΩ Max
Applied Materials:
1. Case Material: Thermoplastic, flame retardant grade UL94V-0
2. Contact bush: Copper alloy, silver plating
Environmental performance:
1. Operating temperature: -30 ° C ~+50 ° C
