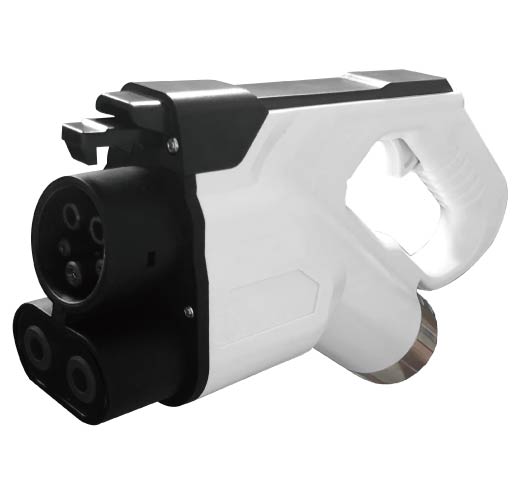

IEC standard AC pile end charging plug combo type

  • Model: KLS15-IEC09
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Features
1. Charging plug meet 62196-3 IEC 2014 SHEET 3-IIIB standard
2. Housing massive structure promote protection performance
3. Product entire insertion and extraction force < 100N
4. Protection class IP65
5. Max charging power: 90kW
Mechanical properties
1. Mechanical life : no-load plug in/pull out>10000 times
2. Impat of external force:  can afford 1m drop and 2t vehicle run over pressure
Electrical Performance
1. Rated current:150A
2. Operation voltage: 600V DC
3. Insulation resistance:>2000MΩ(DC1000V)
4. Terminal temperature rise:<50K
5. Withstand Voltage:3200V
6. Contact Resistance: 0.5mΩ Max
Applied Materials
1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Conntact bush:Copper alloy,silver plating
Environmental performance
1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring

Model Rated current Cable specigication
KLS15-IEC09-150 150A 2 X 50mm²+1 X 6mm² +6 X 0.75mm²
KLS15-IEC09-200 200A 2 X 70mm²+1 X 6mm² +6 X 0.75mm²
