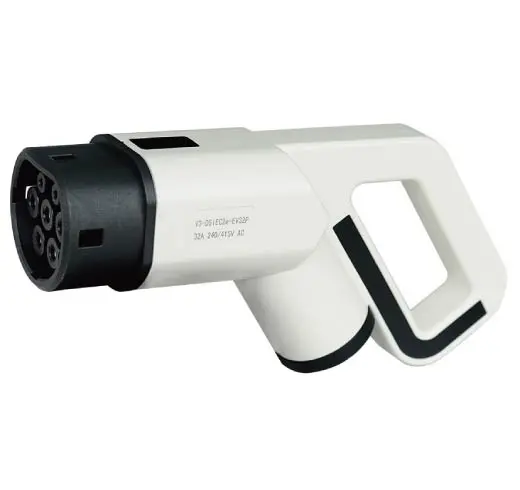

IEC standard AC pile end charging plug
- Product Details
| ITEM | Installation position | Connector | Standard | Rated current | Rated Voltage | Cable specification |
| KLS15-IEC05-D32 | Charging pile | PLUG | IEC 62196-2 | 32A | 415V | 5*6mm2+2*0.5mm2 |
| KLS15-IEC05-E63 | Charging pile | PLUG | IEC 62196-2 | 63A | 250V | 3*16mm2+2*0.75mm2 |
| KLS15-IEC05-D63 | Charging pile | PLUG | IEC 62196-2 | 63A | 415V | 5*16mm2+2*0.75mm2 |
Features:
1. Meet 62196-2 IEC 2010 SHEET 2-IIe standard
2. Nice appearance,hand-held ergonomic design,easy plug
3. Excellent protection performance,protection grade IP44(working condition)
Mechanical Properties
1. Mechanical life：No-load plug in/pull out >5000 times
2. Coupled insertion force: > 45N < 80N
3. Impact of external force: can afford 1m drop and 2t Vehicle run over pressure
Electrical Performance
1.Rated current:32A or 63A
2.Operating Voltage :250/415V
3.Insulation resistance:>1000MΩ（DC500V）
4.Terminal temperature rise: <50K
5.Withstand voltage: 2000V
6.Contact Resistance: 0.5mΩ Max
Applied Materials
1.Case Material :Thermoplastic, flame retardant grade UL94-0
2.Contact bush: Copper alloy,silver plating
Environmental performance
Operating temperature :-30 ° C ~+50 ° C
