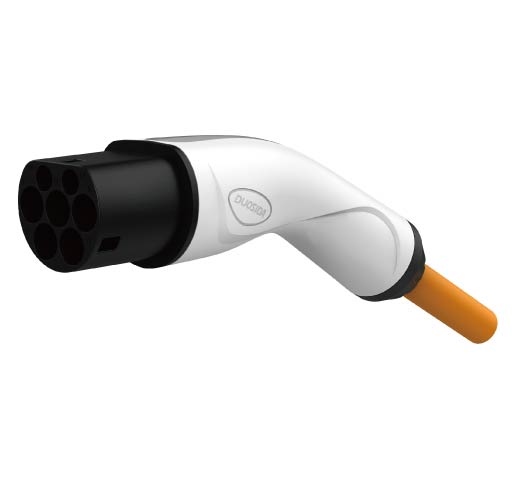

IEC standard AC pile end charging plug

  • Model: KLS15-IEC01B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
ITEM Installation position Connector Standard Rated current Rated Voltage Cable specification
KLS15-IEC01B-E16 Charging pile PLUG IEC 62196-2  16A 250V 3*2.5mm2+1*0.75mm2
KLS15-IEC01B-D16 Charging pile PLUG IEC 62196-2  16A 415V 5*2.5mm2+1*0.75mm2
KLS15-IEC01B-E32 Charging pile PLUG IEC 62196-2  32A 250V 3*6mm2+1*0.75mm2
KLS15-IEC01B-D32 Charging pile PLUG IEC 62196-2  32A 415V 5*6mm2+1*0.75mm2

Fearures:
1. Meet 62196-2 IEC 2010 SHEET 2-IIb standard
2. Nice appearance,hand-held ergonomic design,easy plug
3. Safety pins insulated head design to prevent accidental direct contact with staff
4. Excellent protection performance,protection grade IP44(working condition)

Mechanical properties
1.Mechanical life:No-load plug in/pull out >10000 times
2.Impact of external force: can afford 1m drop and 2t Vehicle run over pressure

Electrical Performance
1.Rated current:16A or 32A
2.Operating Voltage :250/415V
3.Insulation resistance:>1000MΩ(DC500V)
4.Terminal temperature rise: <50K
5.Withstand voltage: 2000V
6.Contact Resistance: 0.5mΩ Max

Applied Materials
1.Case Material :Thermoplastic, flame retardant grade UL94-0
2.Pin:Copper alloy,silver + thermoplastic on the top

Environmental performance
1.Operating temperature :-30 ° C ~+50 ° C
