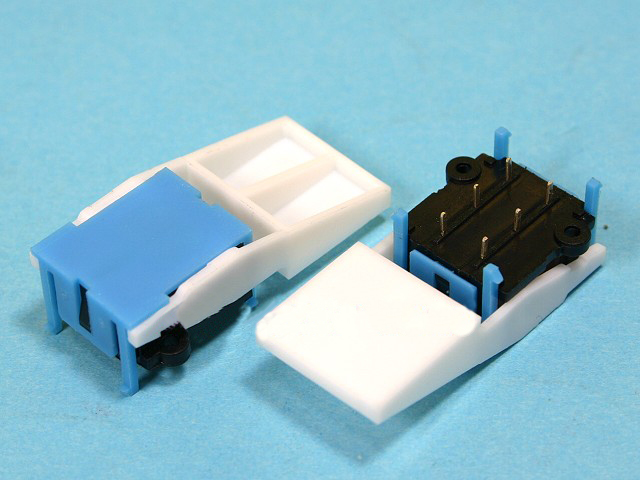

Hook Switch (2P2T)

  • Model: KLS7-HS22L03
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Hook Switch (2P2T)
SPECIFICATION:
Rating: 0.2A 50V DC
Function: 2P2T
Timing: NON-Shorting
Operation Force: 200gf
Dielectric Strength: AC 500 V 1 Minute
Insulation Resistance: 100 MΩ Mim 500V DC
Contact Resistance: 100MΩ Max
Operating Temperature: -35oC ~ +85oC
Life: 100,000 Cycles
