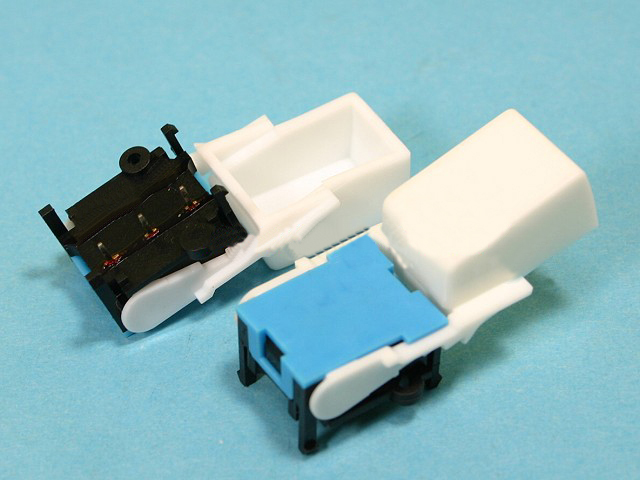

Hook Switch (1P2T)
SPECIFICATION:
Rating: 0.2A 50V DC
Function: 1P2T
Timing: NON-Shorting
Operation Force: 200gf
Dielectric Strength: AC 500 V 1 Minute
Insulation Resistance: 100 MΩ Mim 500V DC
Contact Resistance: 100MΩ Max
Operating Temperature: -35oC ~ +85oC
Life: 100,000 Cycles
