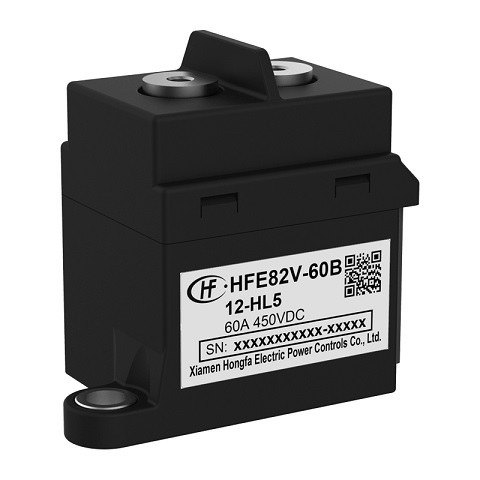

HONGFA High voltage DC relay,Carrying current 60A,Load voltage 450VDC 750VDC
- Product Details
Outline Dimensions:64.0×33.0x52.8mm
Features
● Ceramic brazing sealed technology guarantees no risk of arc leaking and ensures no fire or explosion.
● Filled with gas ( mostly hydrogen) to effectively prevent the oxidation burnt when exposed to electricity; the contact resistance is low and stable, and the parts exposed to electricity can meet IP67 protection level.
● Carrying current 60A continuously at 85°C.
● Insulation resistance is 1000MΩ(1000 VDC), and dielectric strength between the coil and contacts is 3.6kV, which meets the requirements of IEC 60664-1.
Detailed parameters
| Type | HFE82V-60B |
| Coil voltage form | DC |
| Coil voltage | 24, 12 |
| Contact Arrangement | 1 Form A |
| Contact version | Single contact |
| Coil terminal structure | Wire |
| Mounting | Vertical Mounting |
| Load terminal structure | Screw |
| Coil power | Standard |
| Coil characteristic | Single coil |
| Contact capacity | Cu |
| Insulation standard | Class B |
| Contact plating | No coating |
| Polarity | Standard polarity |
| Load voltage | 450VDC,750VDC |
| Shell structure | Standard |
| Base structure | Without plastic mounting boss |
| Coil power | 5.2 |
| Dielectric strength (between coil & contacts) (VAC 1min) | 4000VAC 1min |
| Operate time（ms） | ≤30 |
| Release time（ms） | ≤10 |
| Coil resistance（Ω） | 27.7×（1±7%） 111×（1±7%） |
| Creepage Distance（mm） | 13.15 |
| Electrical Distance（mm） | 7.79 |
| Insulation resistance（MΩ） | 1000 |
| Max. switching Current（DC） | 600 |
| Max. switching voltage（VDC） | 1000 |
| Ambient temperature (max)（℃） | -40 |
| Ambient temperature (min)（℃） | 85 |
| Mechanical endurance min | 250000 |
| Electrial eddurance min | 1000 |
| Contact gap | ≥0.79 |
| Product Description | High voltage direct current relay |
| Application | New energy vehicle |
| Typical application | New energy vehicle |
| Weight（g） | about 170 |
| Outline Dimensions | 64.0×33.0x52.8（mm） |
