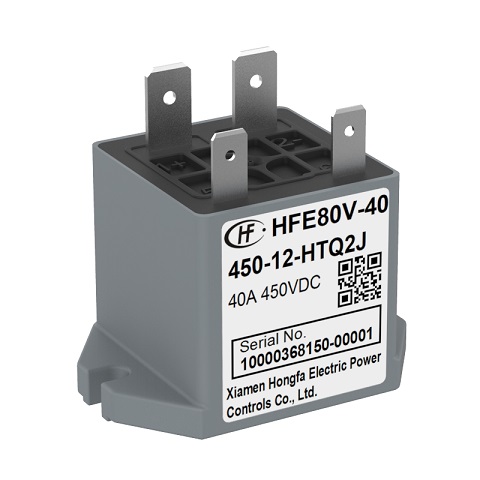

HONGFA High voltage DC relay,Carrying current 40A,Load voltage 450VDC

  • Model: HFE80V-40
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Outline Dimensions:30.1×30.0x29.2mm

Features

● Pre-charging and heating relay for new energy automobile.

● Carrying current 40A continuously at 85°C.

● The electricity safety meets the requirements of IEC 60664-1.

Detailed parameters

Contact Arrangement 1 Form A
Coil terminal structure QC/PCB
Load terminal structure QC/PCB
Coil characteristic Single coil
Load voltage 450VDC
Outline Dimensions 30.1×30.0x29.2mm
