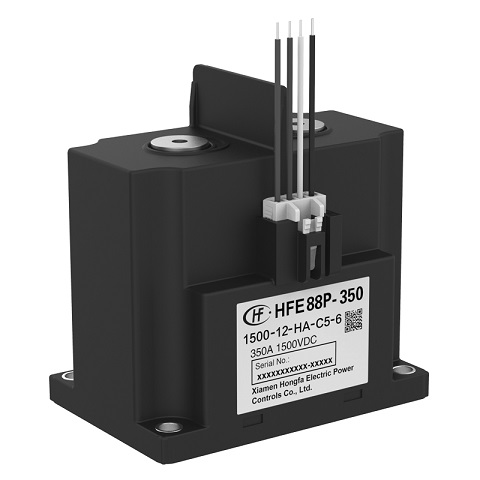

HONGFA High voltage DC relay,Carrying current 350A,Load voltage 1000VDC 1500VDC
- Product Details
Outline Dimensions:104.0×70.0x107.9mm
Features
● Ceramic brazing sealed technology guarantees no risk of arc leaking and ensures no fire or explosion.
● Filled with gas ( mostly hydrogen) to effectively prevent the oxidation burnt; the contact resistance is low and stable, and contact part can meet IP67 protection level.
● Carrying current 350A continuously at 85ºC.
● Insulation resistance is 1000MΩ( 1000 VDC), and dielectric strength between the coil and contacts is 4kV, which meets the requirements of IEC 60664-1.
Detailed parameters
| Contact Arrangement | 1 Form A |
| Coil terminal structure | Connector |
| Load terminal structure | screw |
| Coil characteristic | Double coil with PCBA |
| Load voltage | 1000VDC, 1500VDC |
| Outline Dimensions | 104.0×70.0x107.9（mm） |
