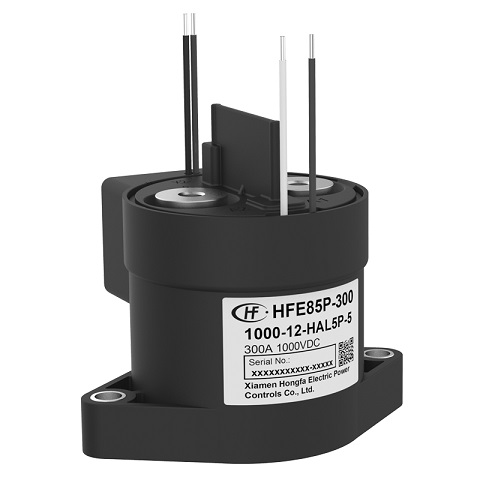

HONGFA High voltage DC relay,Carrying current 300A,Load voltage 450VDC 750VDC 1000VDC
- Product Details
Outline Dimensions:80.4×62.3×72.8mm
Features
● Ceramic brazing sealed technology guarantees no risk of arc leaking and ensures no fire or explosion.
● Filled with gas ( mostly hydrogen) to effectively prevent the oxidation burnt; the contact resistance is low and stable, and contact part can meet IP67 protection level.
● Carrying current 300A continuously at 85ºC.
● Insulation resistance is 1000MΩ( 1000 VDC), and dielectric strength between the coil and contacts is 3.3kV, which meets the requirements of IEC 60664-1.
Detailed parameters
| Contact Arrangement | 1 Form A |
| Coil terminal structure | wire |
| Load terminal structure | screw |
| Coil characteristic | Single coil with PWM |
| Load voltage | 450VDC,750VDC,1000VDC |
| Outline Dimensions | 80.4×62.3×72.8（mm） |
