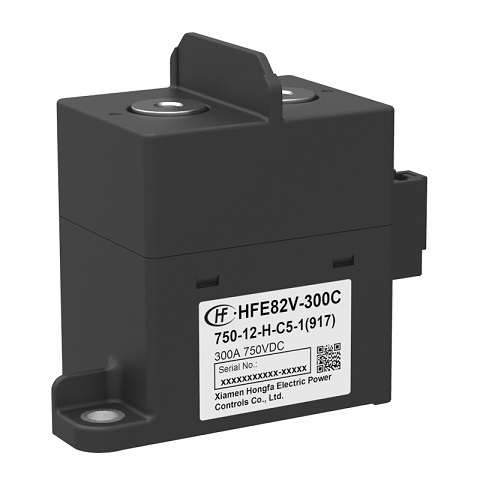

HONGFA High voltage DC relay,Carrying current 300A,Load voltage 450VDC 750VDC
- Product Details
Outline Dimensions:88.3×42.5×74.5mm,85.1×42.5×74.5mm
Features
● Ceramic brazing sealed technology guarantees no risk of arc
leaking and ensures no fire or explosion.
● Filled with gas ( mostly hydrogen) to effectively prevent the
oxidation burnt when exposed to electricity; the contact resistance
is low and stable, and the parts exposed to electricity can
meet IP67 protection level.
● Carrying current 300A continuously at 85°C.
● Insulation resistance is 1000MΩ(1000 VDC), and dielectric
strength between the coil and contacts is 2.6kV, which meets
the requirements of IEC 60664-1.
Detailed parameters
| Contact Arrangement | 1 Form A |
| Coil terminal structure | Connector/QC |
| Load terminal structure | Screw |
| Coil characteristic | Single coil |
| Load voltage | 450VDC，750VDC |
| Outline Dimensions | 88.3×42.5×74.5mm,85.1×42.5×74.5mm |
