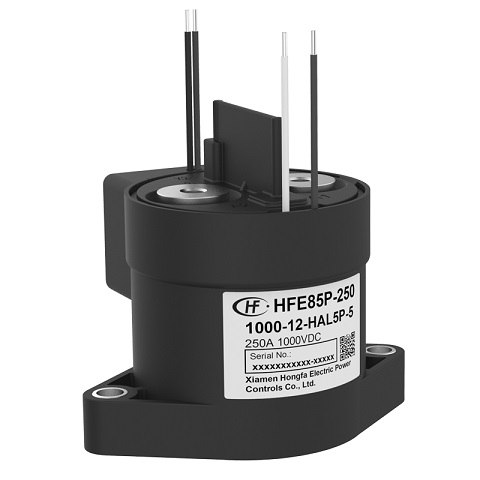

HONGFA High voltage DC relay,Carrying current 250A,Load voltage 450VDC 750VDC 1000VDC

  • Model: HFE85P-250
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Outline Dimensions:80.4×62.3×72.8mm

Features

● Ceramic brazing sealed technology guarantees no risk of arc leaking and ensures no fire or explosion.
● Filled with gas ( mostly hydrogen) to effectively prevent the oxidation burnt; the contact resistance is low and stable, and contact part can meet IP67 protection level.
● Carrying current 250A continuously at 85ºC.
● Insulation resistance is 1000MΩ( 1000 VDC), and dielectric strength between the coil and contacts is 3.3kV, which meets the requirements of IEC 60664-1.

Detailed parameters

Contact Arrangement 1 Form A
Coil terminal structure wire
Load terminal structure screw
Coil characteristic Single coil with PWM
Load voltage 450VDC,750VDC,1000VDC
Outline Dimensions 80.4×62.3×72.8(mm)
