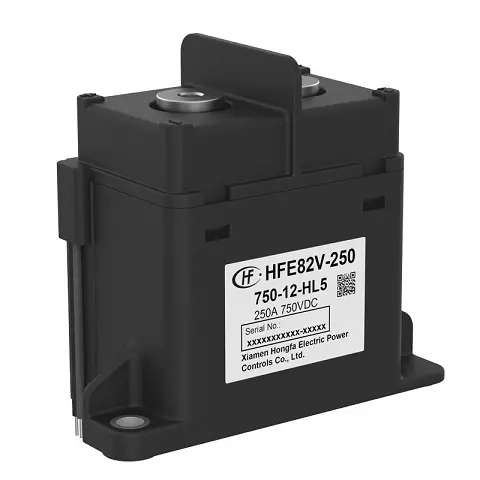

HONGFA High voltage DC relay,Carrying current 250A,Load voltage 450VDC 750VDC
- Product Details
Outline Dimensions:97×45.5×84.7mm
Features
● Ceramic brazing sealed technology guarantees no risk of arc
leaking and ensures no fire or explosion.
● Filled with gas ( mostly hydrogen) to effectively prevent the
oxidation burnt when exposed to electricity; the contact resistance
is low and stable, and the parts exposed to electricity can
meet IP67 protection level.
● Carrying current 250A continuously at 85°C.
● Insulation resistance is 1000MΩ(1000 VDC), and dielectric
strength between the coil and contacts is 4kV, which meets
the requirements of IEC 60664-1.
Detailed parameters
Type
HFE82V-250
Coil voltage form
DC
Coil voltage
12
Contact Arrangement
1 Form A
Coil terminal structure
Wire
Mounting
Horizontal Mounting, Vertical Mounting
Load terminal structure
Screw
Coil power
Standard
Coil characteristic
Single coil
Contact capacity
Cu
Insulation standard
Class H
Contact plating
No coating
Polarity
Standard Polarity
Load voltage
450VDC，750VDC
Shell structure
Standard
Base structure
Without plastic mounting boss
Coil power
6
Dielectric strength (between coil & contacts) (VAC 1min)
4000VAC 1min
Operate time（ms）
≤50
Release time（ms）
≤30
Coil resistance（Ω）
24×（1±7%）
Creepage Distance（mm）
28
Electrical Distance（mm）
9.6
Insulation resistance（MΩ）
1000
Max. switching Current（DC）
250
Max. switching voltage（VDC）
750
Ambient temperature (max)（℃）
-40
Ambient temperature (min)（℃）
85
Mechanical endurance min
200000
Electrial eddurance min
500
Contact gap
≥0.9
Product Description
HTDC relay
Application
New energy vehicles
Typical application
New energy vehicles
Weight（g）
About 570
Outline Dimensions
95.0×45.0x85.0mm,97.0×45.5×84.7mm
