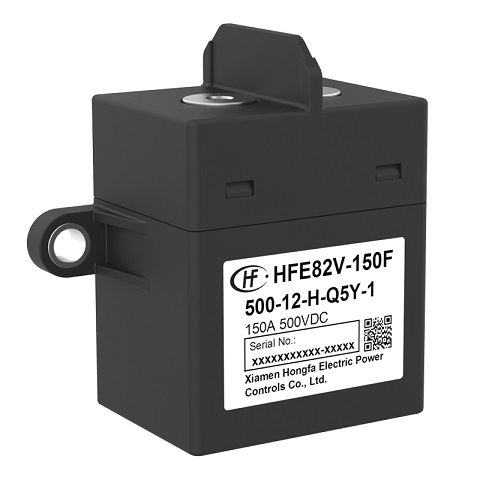

HONGFA High voltage DC relay,Carrying current 150A,Load voltage 500VDC 750VDC
- Product Details
Outline Dimensions:77.0×37.7×71.3mm
Features
● Ceramic brazing sealed technology guarantees no risk of arc leaking and ensures no fire or explosion.
● Filled with gas ( mostly hydrogen) to effectively prevent the oxidation burnt when exposed to electricity; the contact resistance is low and stable, and the parts exposed to electricity can meet IP67 protection level.
● Carrying current 150A continuously at 85°C.
● Insulation resistance is 1000MΩ(1000 VDC), and dielectric strength between the coil and contacts is 4kV, which meets the requirements of IEC 60664-1.
Detailed parameters
| Contact Arrangement | 1 Form A |
| Coil terminal structure | QC |
| Load terminal structure | Screw |
| Coil characteristic | Single coil |
| Load voltage | 500VDC,750VDC |
| Outline Dimensions | 77.0×37.7×71.3（mm） |
