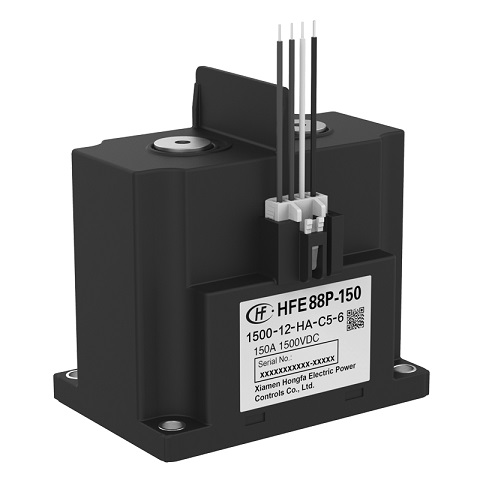

HONGFA High voltage DC relay,Carrying current 150A,Load voltage 1000VDC 1500VDC

  • Model: HFE88P-150
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Outline Dimensions:104.0×70.0x107.9mm

Features

● Ceramic brazing sealed technology guarantees no risk of arc leaking and ensures no fire or explosion.
● Filled with gas ( mostly hydrogen) to effectively prevent the oxidation burnt; the contact resistance is low and stable, and contact part can meet IP67 protection level.
● Carrying current 150A continuously at 85ºC.
● Insulation resistance is 1000MΩ( 1000 VDC), and dielectric strength between the coil and contacts is 4kV, which meets the requirements of IEC 60664-1.

Detailed parameters

Contact Arrangement 1 Form A
Coil terminal structure Connector
Load terminal structure screw
Coil characteristic Double coil with PCBA
Load voltage 1000VDC, 1500VDC
Outline Dimensions 104.0×70.0x107.9(mm)
