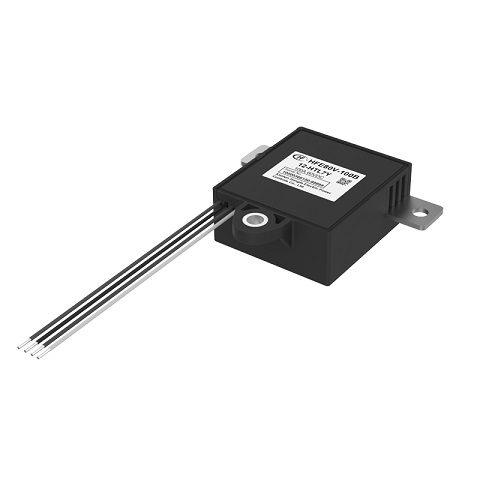

HONGFA High voltage DC relay,Carrying current 100A,Load voltage 60VDC

  • Model: HFE80V-100B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Outline Dimensions:50.6 x 23.0 x 57.0mm

Features

● Preferred products for 48V system.
● Low height and small size.
● Carrying current 100A continuously at 75°C.
● Insulation resistance is 1000MΩ(500 VDC), and dielectric
strength between the coil and contacts is 2.5kV, which meets
the requirements of IEC 60664-1.

Detailed parameters

Contact Arrangement 1 Form A
Coil terminal structure Wire
Load terminal structure With external connector
Coil characteristic Single coil
Load voltage 60VDC
Outline Dimensions 50.6 x 23.0 x 57.0mm
