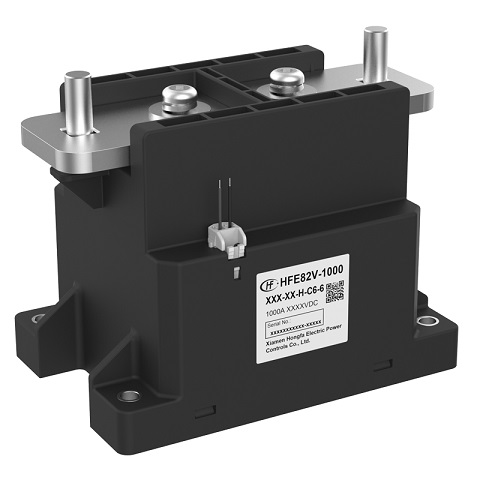

HONGFA High voltage DC relay,Carrying current 1000A,Load voltage 1000VDC 1200VDC

  • Model: HFE82V-1000
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Outline Dimensions:165.6×104.6×132.8mm

Features

● Ceramic brazing sealed technology guarantees no risk of arc
leaking and ensures no fire or explosion.
● Filled with gas ( mostly hydrogen) to effectively prevent the
oxidation burnt when exposed to electricity; the contact resistance
is low and stable, and the parts exposed to electricity can
meet IP67 protection level.
● Carrying current 1000A continuously at 85°C.
● Insulation resistance is 1000MΩ(1000 VDC), and dielectric
strength between the coil and contacts is 5kV, which meets
the requirements of IEC 60664-1.
● Coil with energy-saving devices

Detailed parameters
Contact Arrangement 1 Form A
Coil terminal structure Connector
Load terminal structure Screw
Coil characteristic Double coil with PCBA
Load voltage 1000VDC,1200VDC
Outline Dimensions 165.6×104.6×132.8mm
