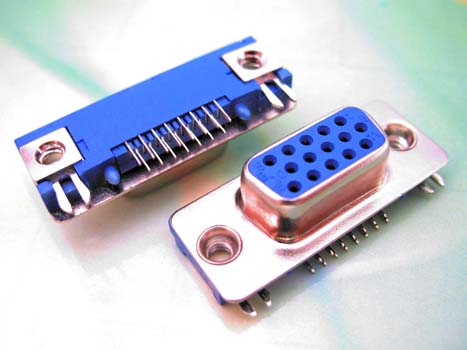

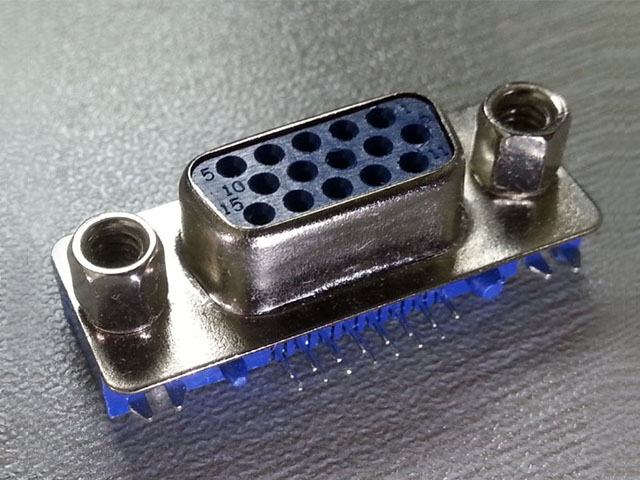

HDR 3 Row Slim Type D-SUB Connector, 15P Female,Right angle

Order Information
KLS1-619C-15-F-L
Type:619 Or 619C
15-No.of 15pins
F-Female
L-Blue B-Black

Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Shell: Steel, Nickel Plating
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 25mΩ Max. Initial
Operating Temperature: -55°C~+105°C

KLS1-619.pdf
