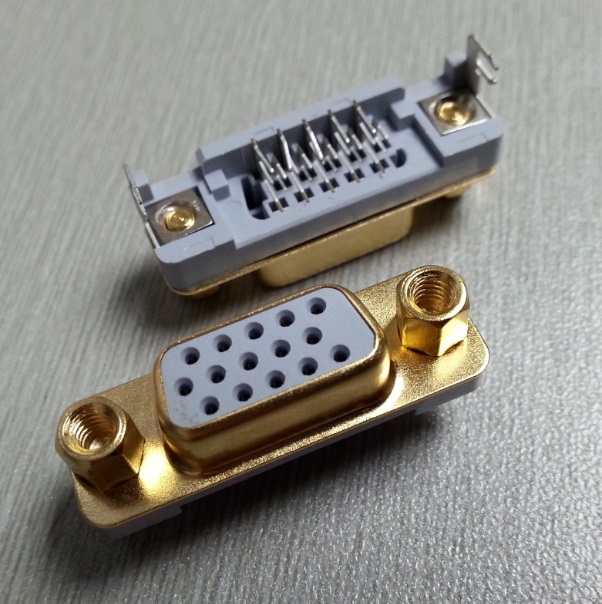

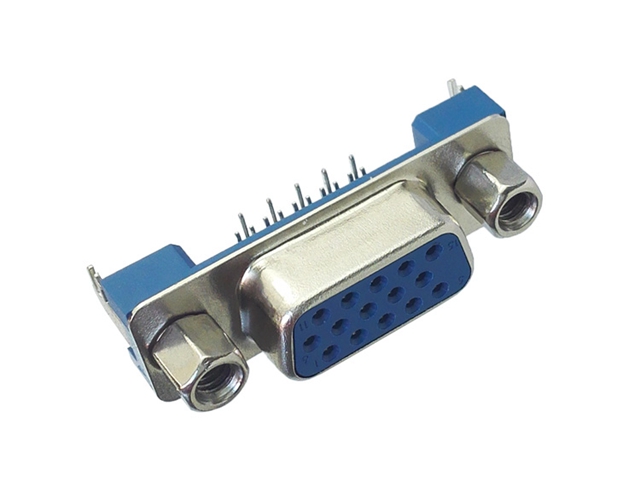

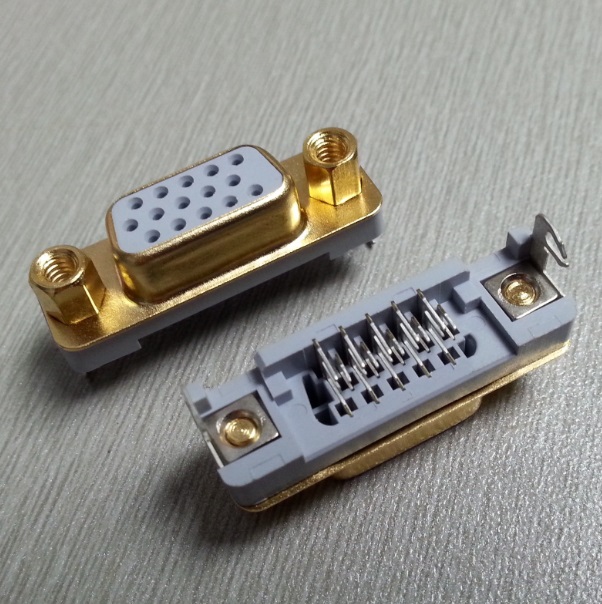

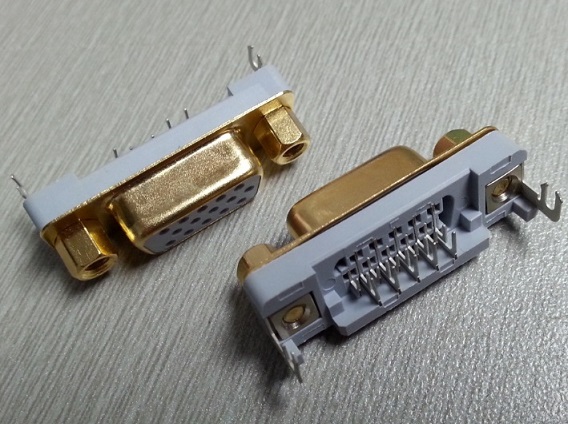

HDR 3 Row Slim Type D-SUB Connector, 15P Female,Right angle

Order Information
KLS1-620-15-F-L-N-R
15-No.of 15 pins
F-Female
B-Black   L-Blue
N-Nickel plated    G-Gold plated
P-Positive     R-Reverse

Material:

Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Shell: Steel, Nickel Plating or Gold Plating

Electrical Characteristics:

Current Rating:            3 AMP
Insulator Resistance:   1000MΩ Min. at DC 500V
Withstanding Voltage:  500V AC (rms) for 1 minute
Contact Resistance:     40mΩ Max. Initial

Operating Temperature: -40°C~+85°C
