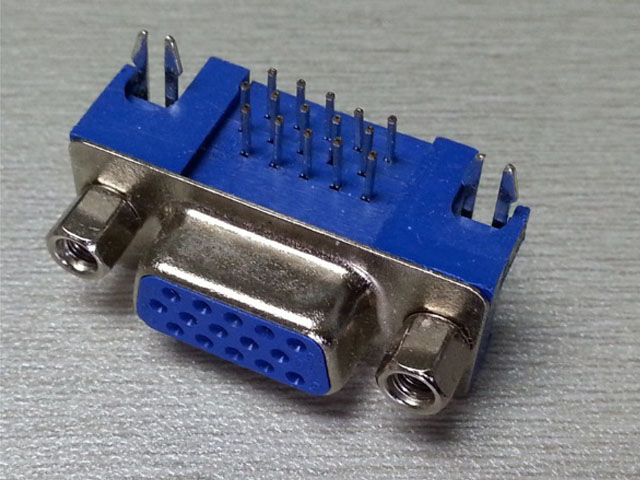

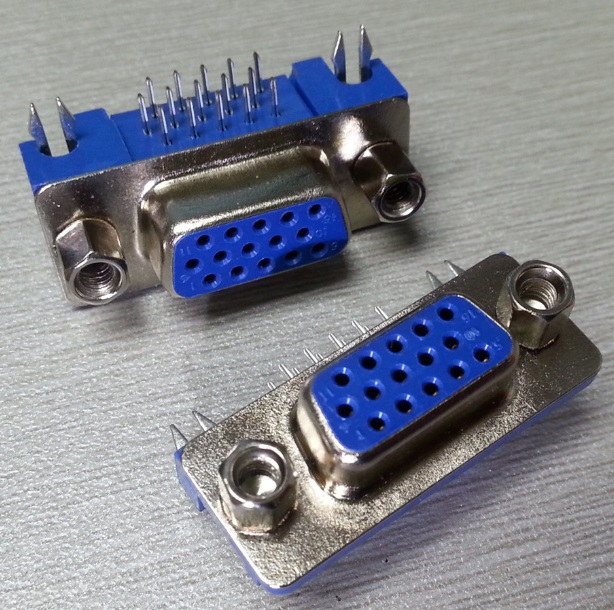

HDR 3 Row D-SUB Connector,15P Female,Right angle,5.08mm

Order Information
KLS1-416-15-F-L
Type:416 Or 416B
15-No.of 15pins
F-Female
L-Blue  B-Black

Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating

Electrical Characteristics:
Current Rating:            5 AMP
Insulator Resistance:   1000MΩ Min. at DC 500V
Withstanding Voltage:  500V AC (rms) for 1 minute
Contact Resistance:     20mΩ Max. Initial

Operating Temperature: -55°C~+105°C

KLS1-416.pdf
