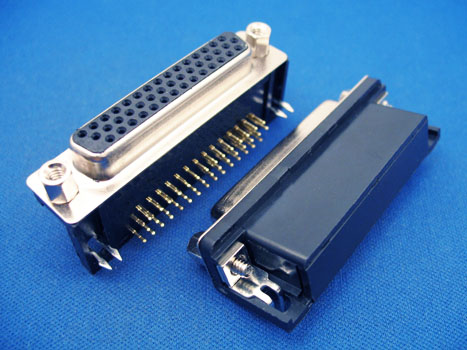

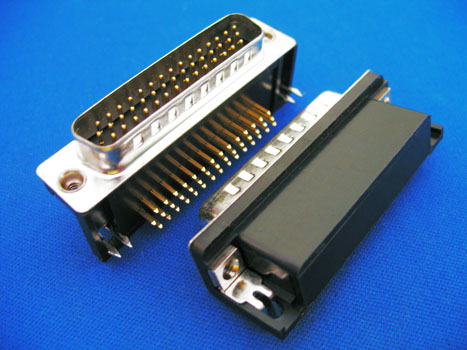

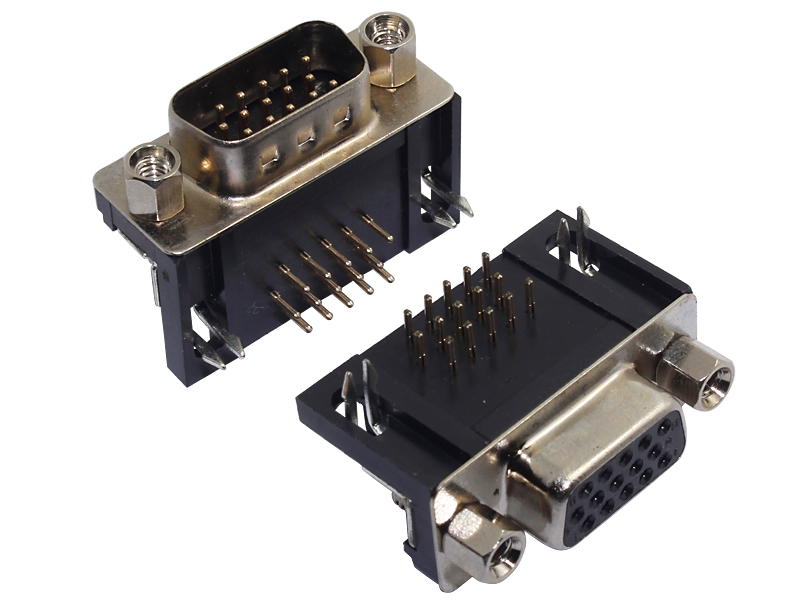

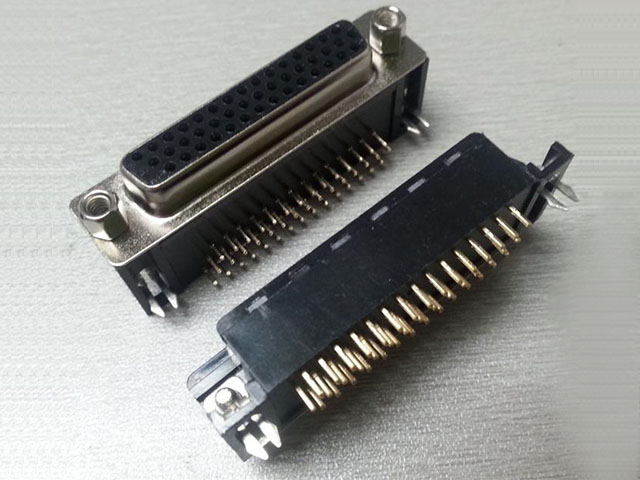

HDR 3 Row D-SUB Connector,15P 26P 44P 62P Female,Right angle,8.89mm

Order Information
KLS1-315-XX-M-B
Type:315,315B
XX-No.of 15,26,44,62pins
M-Male    F-Female
B-Black    L-Blue

Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating

Electrical Characteristics:
Current Rating:            5 AMP
Insulator Resistance:   1000MΩ Min. at DC 500V
Withstanding Voltage:  500V AC (rms) for 1 minute
Contact Resistance:     20mΩ Max. Initial
Operating Temperature: -55°C~+105°C
