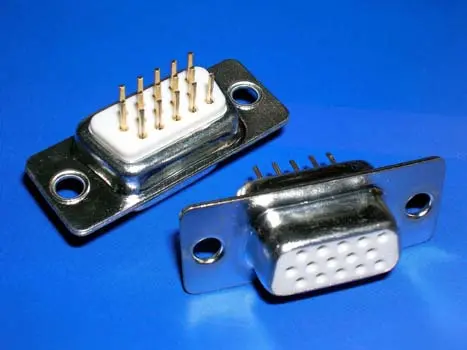

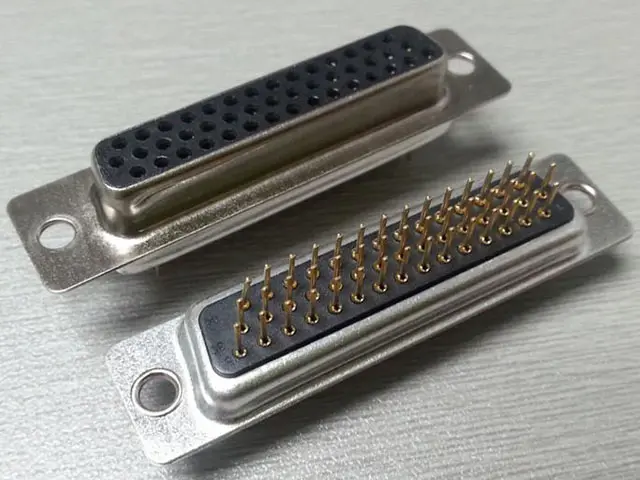

HDP 3 Row D-SUB Connector,PCB Type,15P 26P 44P 62p Male Female

  • Model: KLS1-321
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

HDP 3 Row D-SUB Connector,PCB Type,15P 26P 44P 62p Male Female

Order Information
KLS1-321-XX-M-L
XX-No.of 15,26,44,62pins
M-Male F-Female
L-Blue B-Black W-White

Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating or
Gold Plating on Contact Arer,
Tin on Solder Tail.
Shell: Steel, Nickel Plating

Electrical Characteristics:
Current Rating: 5 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 20mΩ Max. Initial
Operating Temperature: -40°C~+105°C
