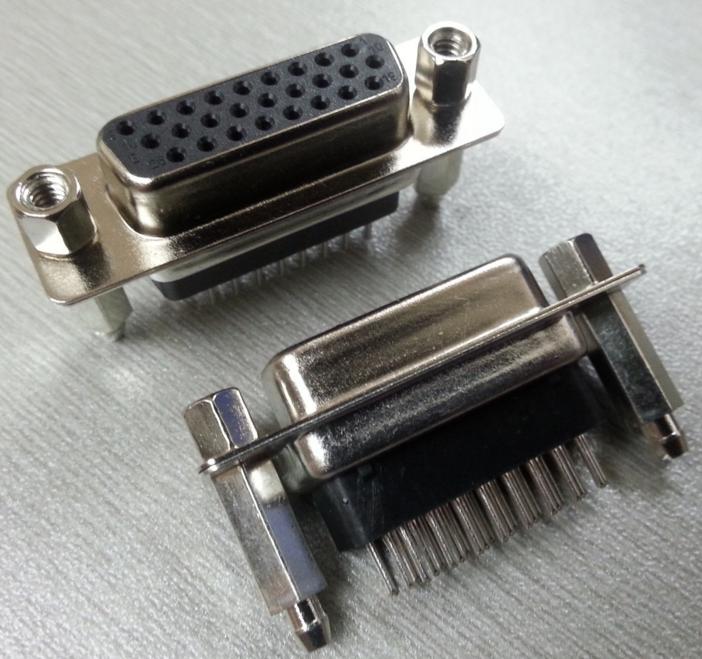

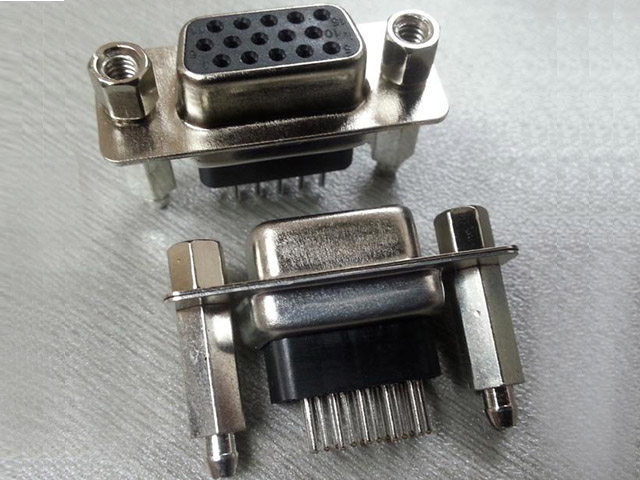

HDP 3 Row D-SUB Connector,PCB Type,15P 26P 44P 62p Male Female

Order Information
KLS1-172-XX-M-B
Type:172,172B,172C
XX-No.of 15,26,44,62pins
M-Male    F-Female
L-Blue    B-Black  W-White

Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating or
              Gold Plating on Contact Arer,
              Tin on Solder Tail.
Shell: Steel, Nickel Plating

Electrical Characteristics:
Current Rating:            5 AMP
Insulator Resistance:   1000MΩ Min. at DC 500V
Withstanding Voltage:  500V AC (rms) for 1 minute
Contact Resistance:     20mΩ Max. Initial
Operating Temperature: -40°C~+105°C

KLS1-172&KLS1-172B&KLS1-172C.pdf
