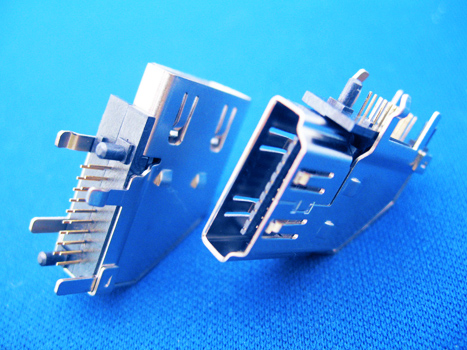

HDMI Connector With Female Dip 90 19P

How to order Example:
KLS1-290-1-N-30

Shell Material: 1-Brass 2-SPCC

Shell Plate: N=Nickel G=Gold
Terminal Plate: 1 = 1U ” / 3 = 3U” / 5 = 5U ” / 10 = 10U” / 15 = 15U ” / 30 = 30U”

Material:
Housing : LCP, UL 94V-0
Cover Terminal: Phosphor Bronze
Shell: Brass/SPCC
Electrical:
Current Rating : 0.5A
Dielectric Withstanding Voltage : 40V AC Per Minute
Insulation Resistance : 100MΩ MIN
Contact Resistance : 30MΩ MAX
Operating Temperature: -25ºC ~+85ºC

KLS1-290.pdf
