Order Information
KLS17-HCP-06A-V1.3B-G-1.50M-B-24AWG-Y
Availble version:V1.3B,V1.3C,V1.4
Connector Plating:G=24K Gold-plated   N=Nickel-plated
Cable Length:1.50M and Other Length
Cable Color:L=Blue  B=Black  E=Beige R=Red  G=Green
Cable type:24AWG,26AWG,28AWG,30AWG
Ferrite Core Optional:Y=With   N=Without

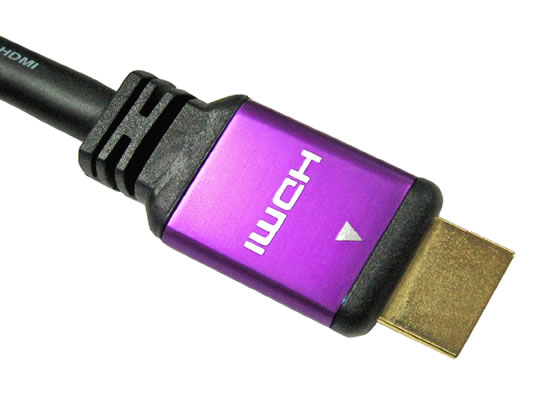

Connector A: HDMI 19P Male Type
Connector B: HDMI 19P Male Type
Connector Plating:24K Gold-plated
Cable Length:1.50 Metre
Cable Color:Black
Cable Type:24AWG,26AWG,28AWG,30AWG Standard
Ferrite Core Optional:With Or Without

Material:
– 99.99% oxygen-free, solid-copper high-purity conductors reduce signal distortion
– Quad-shielding isolates from outside noise for superior clarity
– Precision formulated, polyethylene dielectric material maintains stronger signals
– Impedance-matched, twisted-pair construction reduces cross talk and interference
– Integrated strain relief protects against wire damage for consistently high quality
– Abrasion resistant, flexible PVC jacket maintains integrity, even when bent
– 24k gold-plated connectors create precise contact for low signal loss

Electrical Characteristics:
-This  HDMI Audio/Video Cable V1.3 OR V1.4 provides a high quality interface between any HDMI-enabled audio/video source, such as HDTV’s, DVD players including HD DVD/Blu-Ray Players, A/V receivers and projectors. This HDMI cable supports 720p, 1080i, and 1080p HDTV resolutions.

-Eliminates unnecessary signal conversions.
-Supports standard, enhanced, or high-definition video,340MHz max clock frequency.
-Supports up to 8 channel digital audio on a single cable eliminating costly A/D signal conversions.
-Bi-directional control signal transfer.
-10.2 Gbps bandwidth that suppors the future demand of HD displays
-Simple, user-friendly connector.
-HDCP (High-Bandwidth Digital Content Protection) Compliant
-Fully Compatible with new HDMI 1.4 specification and HDMI 1.3b or below
