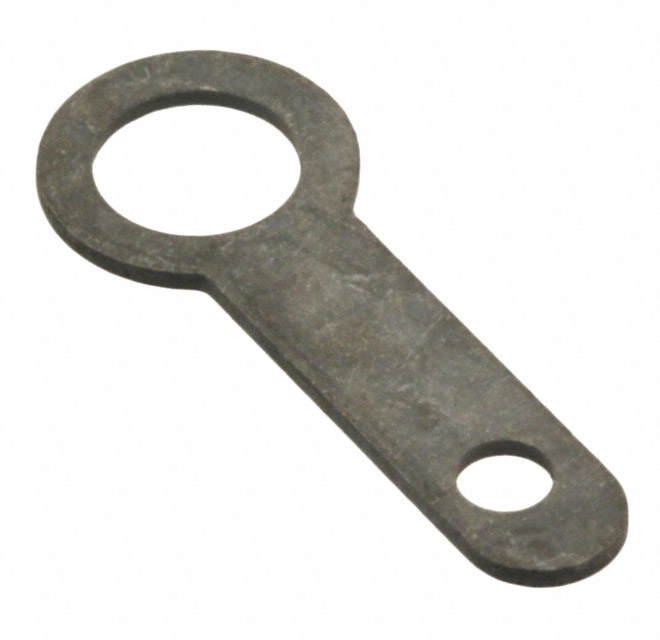

Ground Terminal

Model: KLS8-01133
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

P/N	Material	Plating	Dimension(mm)					Q’TY	REMARKS
P/N	Material	Plating	A	C	D	E	F	BAG	REMARKS
L-KLS8-01133-ND-2	Brass	Tin	2.20	5.0	12.00	2.80	0.25	10000
L-KLS8-01133-ND-3	Brass	Tin	3.20	6.4	14.00	3.00	0.30	10000
L-KLS8-01133-ND-4	Brass	Tin	4.20	8.0	15.00	3.50	0.30	10000
L-KLS8-01133-ND-5	Brass	Tin	5.20	10.0	18.00	4.20	0.30	5000
L-KLS8-01133-ND-6	Brass	Tin	6.20	12.0	21.00	5.00	0.30	5000
L-KLS8-01133-ND-8	Brass	Tin	8.20	16.0	25.00	5.00	0.30	1000
