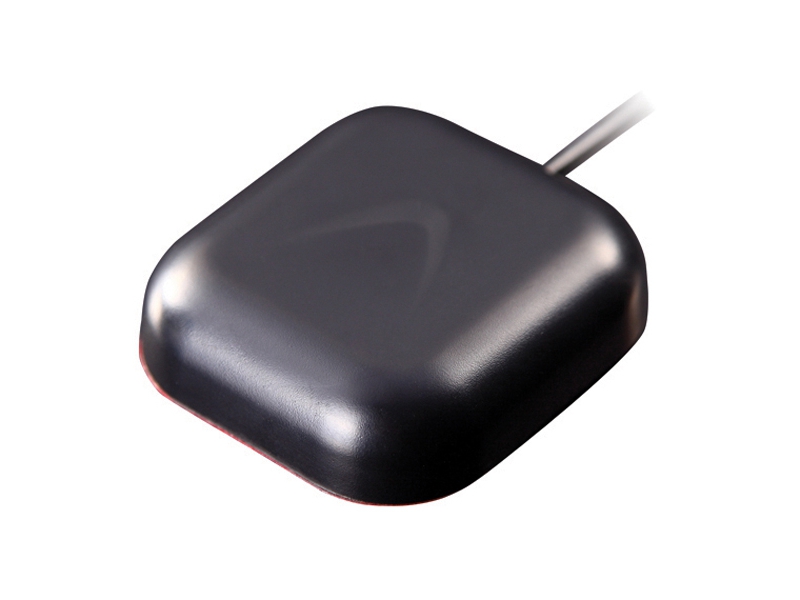

GPS+GSM Antenna

  • Model: KLS1-GM03
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Order Information

KLS1-   GM   03  –  010   3000

GM:     GPS+GSM
Con. Code:   010: SMA-J  Connector
3000:  Cable Lenges

Specification:
GPS Antenna
Center Frequency: 1575.42±3MHz
Band Width:CF±5MHz
Polarization:RHCP
Gain:5dBic
V.S.W.R:<1.5
Impendance:50Ω
Axial Ratio:3dB(max)

LAN
Gain:28±2dB
Noise Figure:<1.5
Filter Insertion Loss:<3dB
Ex-band Attenuation:12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage:2.2~5V DC
Current Consumption:5~15mA
V.S.W.R:<2.0

GSM Antenna
Frequency Range: 824~960MHz/1710~2170MHz
V.S.W.R:<2.0
Polarization:Linear
Gain: 2.0dBi Max.
Impendance:50Ω
Cable:RG174
Connector:SMA/MCX/FAKRA or others
Radome Material:ABS
Mounting Method:Magnet
Operating Temperature :-40℃~+85℃
