Order Information

KLS1-   GN     01 –  010   3000

GN:     GPS+GLONASS
Con. Code:   010: SMA-J  Connector
011:  RP SMA-J
020: SMB-J
030: MCX-J
040: MMCX-J
050: FAKRA-J

3000:  Cable Lenges

Specification:

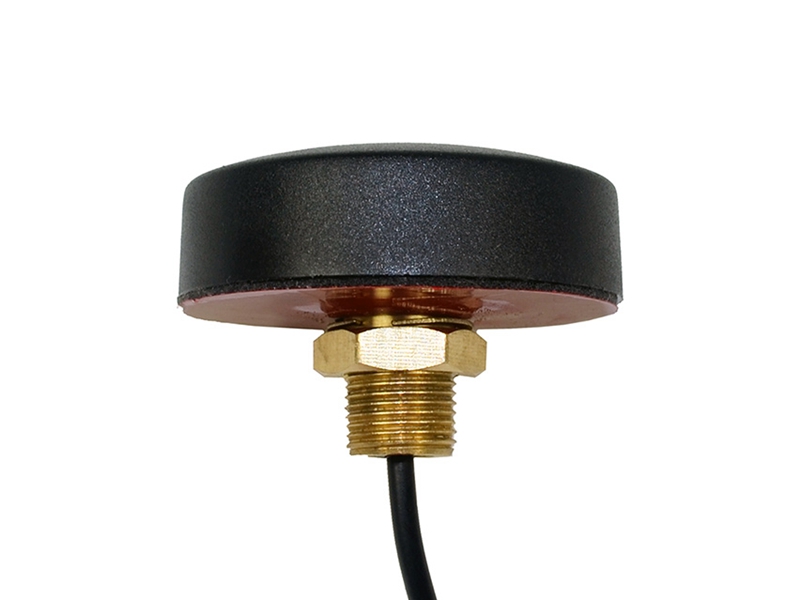

Antenna
Center Frequency: 1602-1610MHz / 1575.42±3MHz
Band Width:CF±5MHz
Polarization:RHCP
Gain:5dBic
V.S.W.R:＜1.5
Impendance:50Ω
Axial Ratio:3dB（max）

LAN
Gain:28±2dB
Noise Figure:＜1.5
Filter Insertion Loss:＜3dB
Ex-band Attenuation:35dB@CF±50MHz/50dB@CF±100MHz
Supply Voltage:2.2~5V DC
Current Consumption:10~20mA
V.S.W.R:＜2.0
Cable:RG174
Connector:SMA/MCX/FAKRA or others
Radome Material:ABS
Mounting Method:Screw
Operating Temperature :-40℃~+85℃
